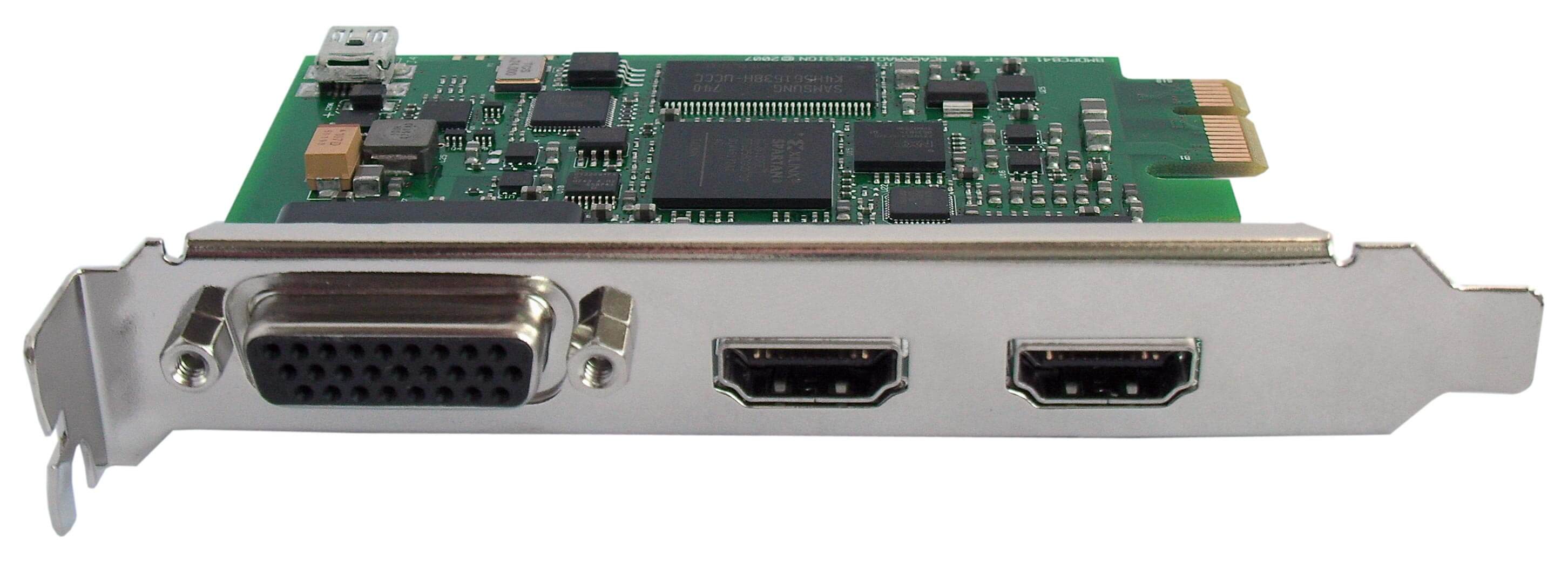

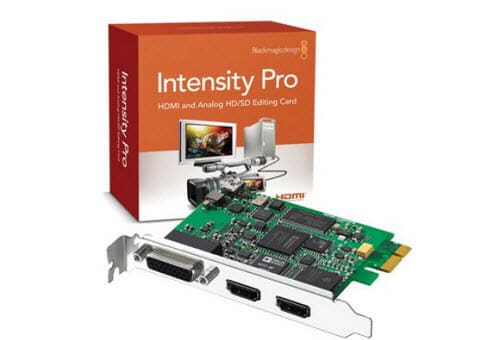

Az Intensity Pro 4K a Blackmagic Design belépőszintű, valósidejű videószerkesztő kártyája. Analóg és digitális be és kijáratokkal rendelkezik, akár 4K-s felbontásban is használható. MAC, PC és Linux kompatibilis
| HDMI Video Input | 1x HDMI type A connector |
| HDMI Video Output | 1x HDMI type A connector |
| HDMI Audio Input | 8 channels embedded in SD, HD, and Ultra HD |
| HDMI Audio Output | 8 channels embedded in SD, HD, and Ultra HD |
| Analog Video Input | Component, Composite or S-Video via breakout cable |
| Analog Video Output | Component, Composite or S-Video via breakout cable |
| Analog Audio Input | 2 channel RCA HiFi audio in 24-bit |
| Analog Audio Output | 2 channel RCA HiFi audio in 24-bit |
| SPDIF Audio Output | 2 channel 24-bit |
| Multiple Rate Support | HDMI video connections are switchable between SD, HD, and Ultra HD. Component analog video connections are switchable between SD and HD. |
| Computer Interface | PCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots |
| SD Format Support | 625i/50 PAL and 525i/59.94 NTSC, 480p |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Video Sampling | RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Color Space | REC 601, REC 709 |
| HDMI Color Precision | 10-bit |
| HDMI Configuration | HDMI 1.4b supports deep color and automatically configures to connected display |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| UHD/HD Down Conversion | Software based down conversion during video playback |
| HD Up Conversion | Real time SD to 1080 HD and 720 HD during video capture |
| Real Time Effects | Final Cut Pro X internal effects; Premiere Pro CC Mercury Playback Engine effects; Avid Media Composer internal effects |
| Internal Software Upgrade | Firmware built into software driver, loaded at system start or via updater software |
| Physical Installation | PCI Express 4 lane, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows 7 and 8, and Linux |
| Operating Temperature | 32 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 113°F (-20 to 45°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 3.4″ depth (8.6 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.85 lb |
| Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.4″ |
