Blackmagic Design Intensity Shuttle for USB 3.0

Blackmagic Design Intensity Shuttle for USB 3.0

The Blackmagic Design Intensity Shuttle is a 10-bit HD/SD video capture/playback device that supports USB 3.0.

Category:

The Blackmagic Design Intensity Shuttle is a 10-bit HD/SD video capture/playback device that supports USB 3.0, and allows you to capture 10-bit HDMI or analog video directly from a camera onto your computer for professional editing or mere playback. With a neat, compact design, the Intensity Shuttle is very portable and easy to set up. As the input and output connections are on different sides, you can simply plug the unit in line with your existing cable setup.

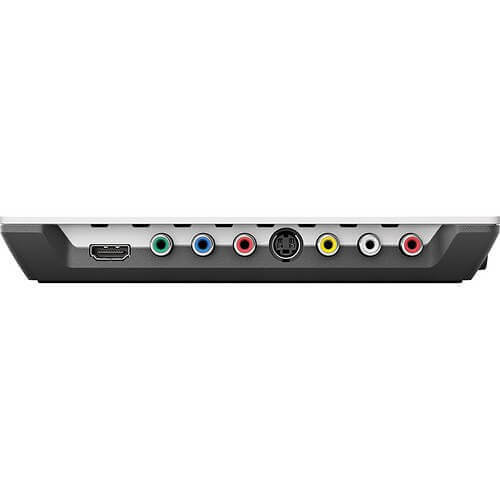

Connections
  • Digital Video Input: 1 x HDMI input. For legal reasons HDMI input is unable to capture from copy protected HDMI sources
  • Digital Video Output: 1 x HDMI output
  • Supported HDMI formats: 525 NTSC, 625 PAL, 720HD and 1080HD switchable
  • HDMI Audio Input: 8 Channels
  • HDMI Audio Output: 8 Channels
  • Analog Video Input: Component, NTSC, PAL or S-Video
  • Analog Video Output: Component, NTSC, PAL or S-Video
  • Analog Audio Input: 2 Channel RCA HiFi audio in 24 bit
  • Analog Audio Output: 2 Channel RCA HiFi audio in 24 bit
  • SPDIF Audio Output: None
  • Dual Rate support: HDMI and Analog Component switches between high definition and standard definition
  • Sync Input: None
  • Device Control: None. FireWire may be used for controlling some cameras
  • Computer Interface: USB 3.0
Standards
  • SD Format Support: 625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p
  • HD Format Support: 1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94, 720p60
  • HDMI Video Sampling: 4:2:2
  • HDMI Color Precision: 4:2:2
  • HDMI Color Space: YUV 4:2:2
  • HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
Processing
  • Colorspace Conversion: Hardware based real time
  • Real time effects: Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed edit formats
Firmware
  • Firmware Upgrade: Firmware built into software driver. Loaded at system start, or via updater software
System Requirements Mac OS X 10.9 Mavericks, 10.10 Yosemite, 10.11 El Capitan, or later
Windows 8.1 or Windows 10
Linux
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 7.9 x 5.4 x 1.4″
