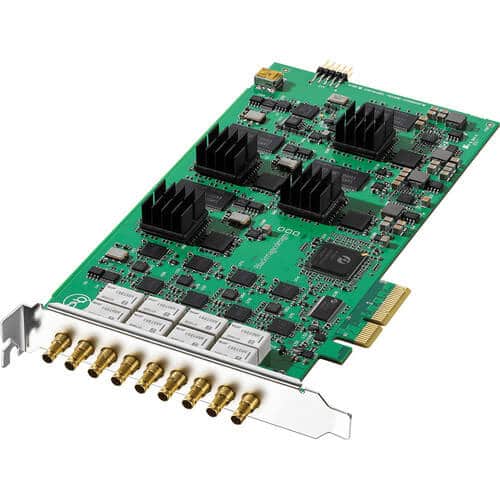

Combing four independent SDI capture and playback cards in one, the Blackmagic Design DeckLink Quad features four SDI inputs and four SDI outputs that can be independently switched between SD and HD video formats.
Combing four independent SDI capture and playback cards in one, the Blackmagic Design DeckLink Quad features four SDI inputs and four SDI outputs that can be independently switched between SD and HD video formats. It also provides a common black burst/tri-sync input for all four channels, and features a built in watchdog timer under API control with bypass relays for a robust broadcast solution that automatically switches to bypass if power is lost, or software crashes. The DeckLink Quad appears as four independent SDI cards to the computer, but uses only a single PCIe slot.
| Computer Interface | PCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots. |
| Inputs | 4 x SD/HD-SDI, 10-bit (DIN 1.0/2.3 connectors) |
| Outputs | 4 x SD/HD-SDI, 10-bit (DIN 1.0/2.3 connectors) |
| SDI Audio Input | 8 channels per input, embedded in SD and HD |
| SDI Audio Output | 8 channels per input, embedded in SD and HD |
| Sync Input | Blackburst in SD, 720p50, 720p59.94, 1080i50, and 1080i59.94 formats or Tri-Sync in any HD format |
| Codecs Supported | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2 |
| Resolutions and Frame Rates | 625/25 PAL 525/29.97 NTSC 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/2529.97/30 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M |
| SDI Metadata Support | VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 and closed captioning |
| Audio Sampling | 48 kHZ, 24-bit |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | Rec. 601, Rec. 709 |
| Compatible Operating Systems | Mac OS X 10.9 or later Windows 7 and Windows 8 64-bit Linux |
| Operating Temperature | 32 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 113°F (-20 to 45°C) |
| Relative Humidity | 0 to 90% non-condensing |
