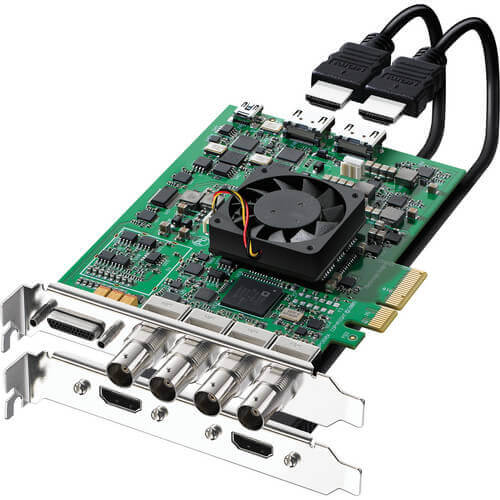

A DeckLink 4K Extreme a Blackmagic Design analóg, HDMI és SDI be és kimenetes kártyája, amely hardveres RS422 vezérléssel is rendelkezik, támogatja akár a 4K-s anyagok feldolgozását is, továbbá 1.4-es HDMI csatlakozóval, így 3D-s szerkesztéshez optimális választás!
A DeckLink 4K Extreme a Blackmagic Design analóg, HDMI és SDI be és kimenetes kártyája, amely hardveres RS422 vezérléssel is rendelkezik, támogatja akár a 4K-s anyagok feldolgozását is, továbbá 1.4-es HDMI csatlakozóval, így 3D-s szerkesztéshez optimális választás!
| SDI Video Input | 2x 10-bit SD/HD/2K/4K and 2D/3D switchable Supports 3 Gb/s and 6 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4 |
| SDI Video Output | 2x 10-bit SD/HD/2K/4K and 2D/3D switchable Supports 3 Gb/s and 6 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4 |
| Analog Video Input | 1x Component YUV on 3 BNCs switchable to S-Video or Composite Component supports HD and SD |
| Analog Video Output | 1x Component YUV on 3 BNCs switchable to S-Video and Composite Component supports HD and SD |
| HDMI Video Input | 1x HDMI type A connector including 3D frame packing support and Ultra HD 4K support |
| HDMI Video Output | 1x HDMI type A connector including 3D frame packing and 4K monitoring support |
| Analog Audio Input | 2 channels of professional balanced analog audio via XLR connectors |
| Analog Audio Output | 2 channels of professional balanced analog audio via XLR connectors |
| AES/EBU Audio Input | 2 channels unbalanced with sample rate converter |
| AES/EBU Audio Output | 2 channels unbalanced |
| SDI Audio Input | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
| SDI Audio Output | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
| HDMI Audio Input | 8 channels embedded in SD and HD |
| HDMI Audio Output | 8 channels embedded in SD and HD |
| Sync Input | Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD or 2K format |
| Device Control | Sony compatible RS-422 deck control ports Serial ports TxRx direction reversible under software control |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe Slots |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC |
| Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4 |
| Supported Applications | Apple Final Cut Pro X, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Nuke – The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in / live:cut / just:play / just:live, Softron OnTheAir / MovieRecorder / OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro / Studio / Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster |
| SD Format Support | 625/25 PAL, 525/29.97 NTSC, and 525/23.98 NTSC |
| HD Format Support | 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60 |
| 2K Format Support | 2048 x 1556PsF23.98, 2048 x 1556PsF24, 2048 x 1556PsF25, 2048 x 1556p23.98, 2048 x 1556p24 and 2048 x 1556p25 |
| 4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 372M, ITU-R BT.656 and ITU-R BT.601 |
| SDI Metadata Support | VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 Closed captioning |
| Sampling | Video: 4:2:2 and 4:4:4 (4K is 4:2:2 only)Audio: Television standard sample rate of 48 kHz at 24 bit |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| HDMI Configuration | HDMI automatically configures to connected display |
| HDMI Resolution | Pixel for pixel up to 4K resolutions |
| HDMI Color Precision | 10-bit |
| Multiple Rate Support | HDMI and SDI video connections are switchable between SD/HD/2K and 4K Component analog video connections are switchable between SD and HD |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources Always confirm copyright ownership before capture or distribution of content |
| Colorspace Conversion | Hardware based real time |
| 3D Processing | Dual stream and frame packed capture & playback |
| HD Down Conversion | Built in, high quality hardware down converter outputs HD-SDI on SDI A output, SD-SDI on SDI B output and Composite and S-Video when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. |
| HD Up Conversion | Built-in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog. |
| Cross Conversion | Built-in, high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback |
| Real Time Effects | Apple Final Cut Pro internal effects Adobe Premiere Pro Mercury Playback Engine effects Avid Media Composer internal effects DaVinci Resolve |
| Operating Systems Supported | Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later Windows 7 or Windows 8 Linux |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux |
| Operating Temperature | 32 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 113°F (-20 to 45°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | Depth: 6.38″ (16.2 cm) |
| Weight | 6.7 oz (190 g) |
