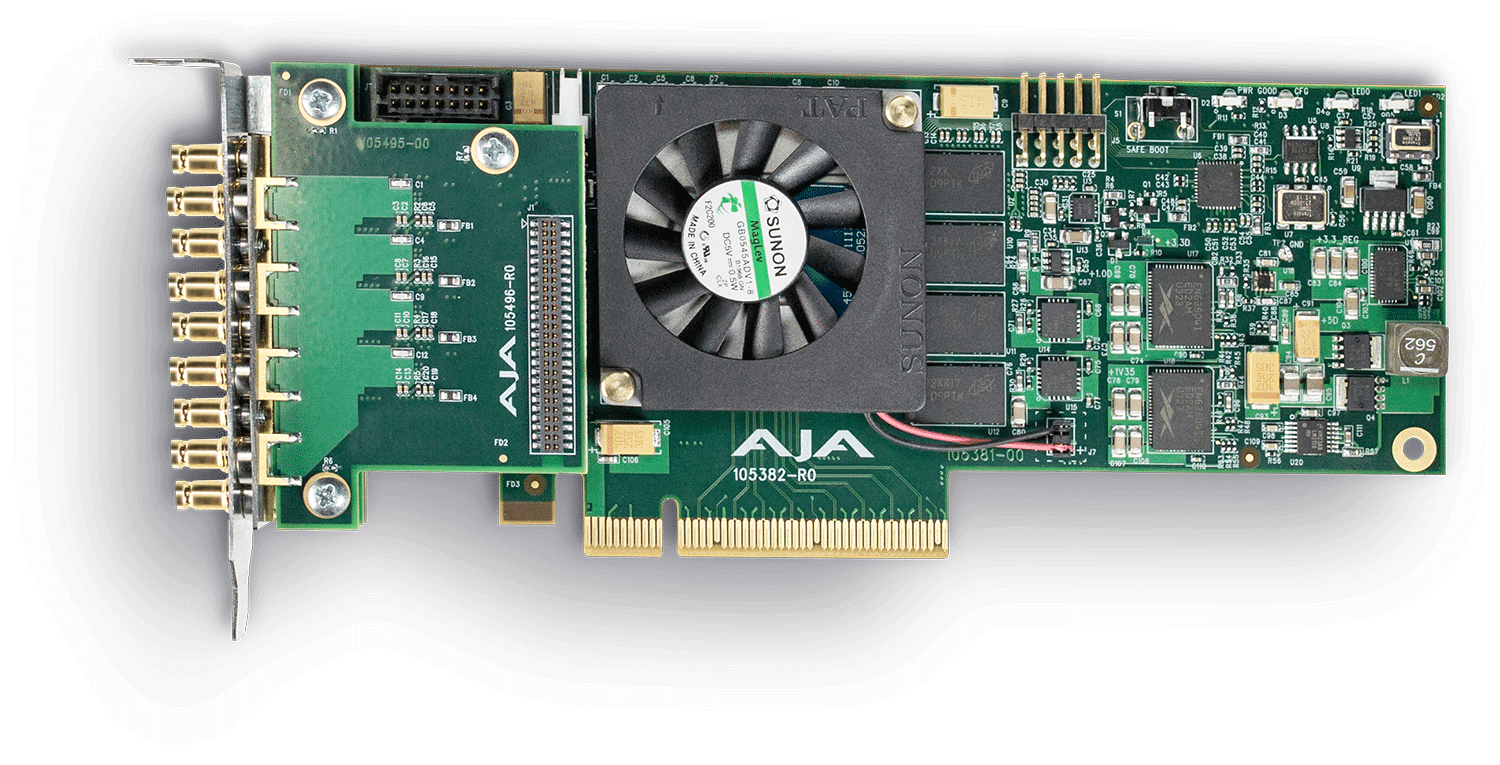

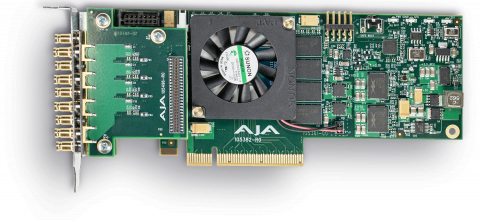

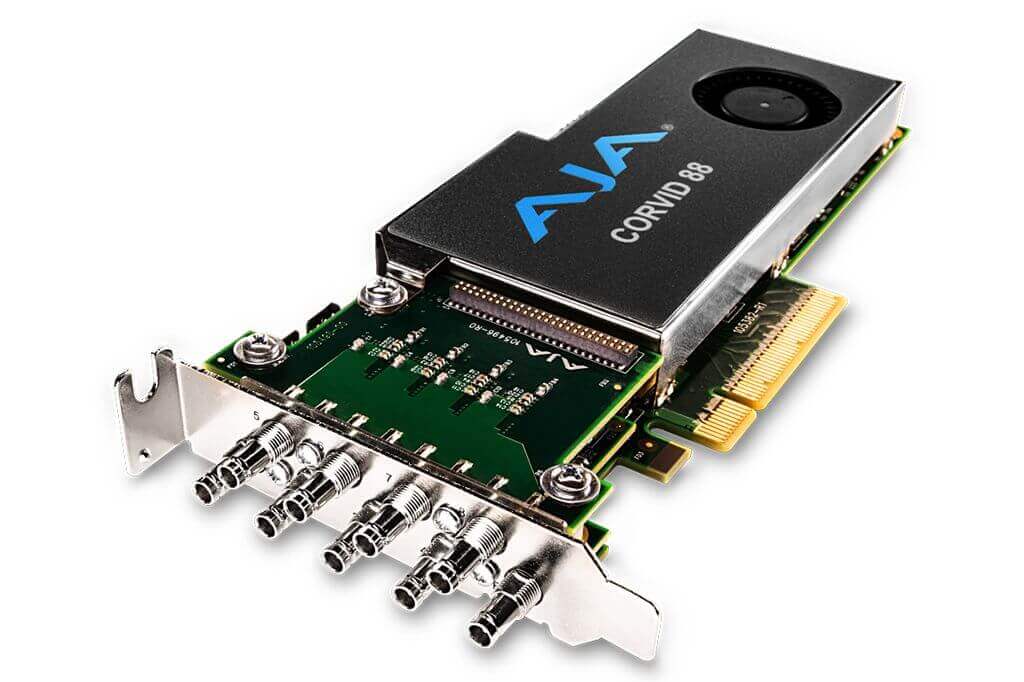

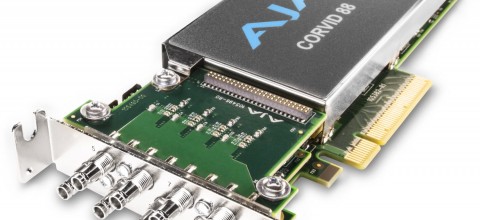

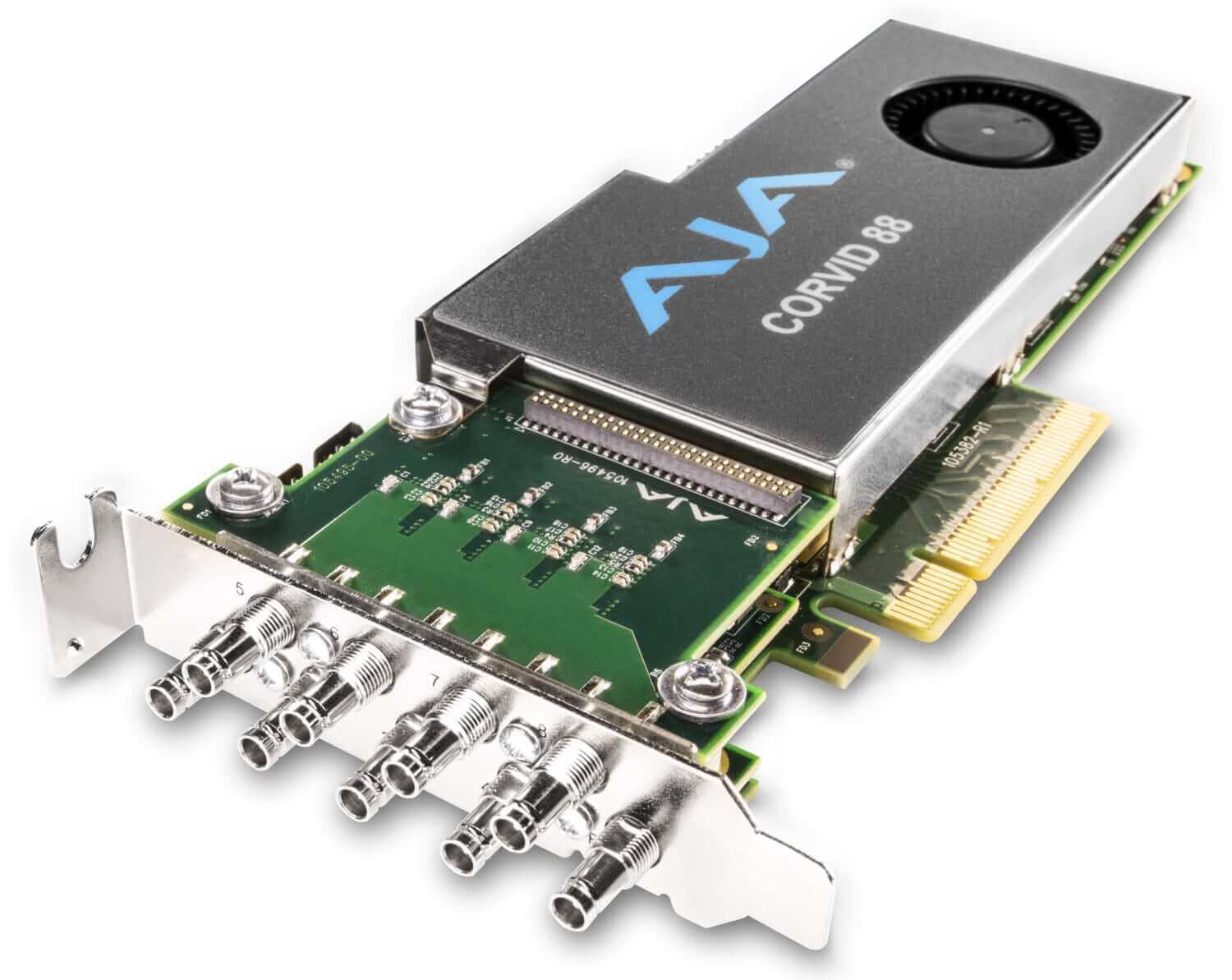

Corvid 88

Maximize your video and audio I/O capacity with Corvid 88. Configure each SDI connection individually as input or output and mix formats for up to 8 HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections for multiple 4K/UHD channels allowing incredible flexibility and futureproofing with playout and ingest servers or channel-in-a-box systems.

Category:

Maximize your video and audio I/O capacity with Corvid 88. Configure each SDI connection individually as input or output and mix formats for up to 8 HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections for multiple 4K/UHD channels allowing incredible flexibility and futureproofing with playout and ingest servers or channel-in-a-box systems.

Video Formats

• (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
• (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
• (2K) 2048 x 1080P 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
• (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
• (HD) 1080i 25, 29.97, 30
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
• (HD) 720p 50, 50.94, 60
• (SD) 625i 25
• (SD) 525i 29.97


Video Input and/or Output Digital

• 8 x 3G-SDI BNC


Audio Input Digital

• 16-Channel 24-bit SDI embedded, 48 kHz synchronous


Audio Output Digital

• 16-Channel 24-bit SDI embedded, 48 kHz synchronous


Size (w x d x h)

• .875″ x 7.25″ x 4.875″ (22.23mm × 184.15mm × 123.83mm)


Weight

• 0.4 lb (0.2 kg)


Power

• 17 watts typical, 19 watts max


Environment

• Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Operating Relative Humidity: 10-90% non-condensing
• Safe Storage Temperature (Power OFF): -40 to 70 degrees C (-40 to 158 degrees F)
• Operating Altitude: <3,000 meters (<10,000 feet) • Airflow across the board for fanless models • 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
