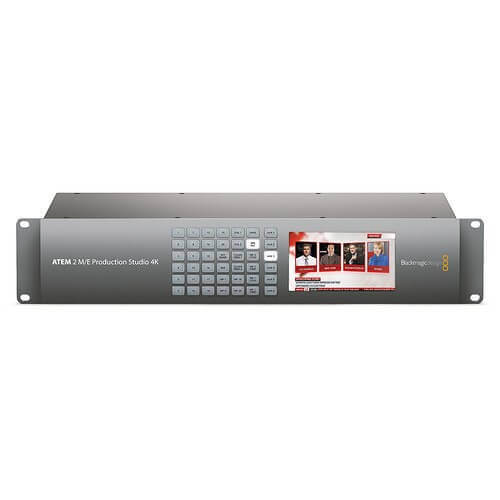

A Blackmagic Design 2U magas, SD/HD/4K képmixere 20 videó bemenettel, és 13 Aux, SDI / HDMI program- és MultiViewer kimenetekkel rendelkezik. Az eszköz egyes program-moduljainkból opcionálisan vezérelhető.
Input resolutions for computer:
720 x 480i 59.94 Hz
720 x 576i 50 Hz
1280 x 720 50/59.94 Hz
1920 x 1080 50/59.94 Hz
3840 x 2160 23.98/24/25/29.97 HzNote: Also supported are: 24, 30, and 60 Hz inputs when switcher is in 23.98, 29.97, and 59.94 Hz formats respectively.
SDI Compliance
SMPTE 259M, 292M
Connectivity
Video Inputs
20 x SDI (10-bit SD/HD/Ultra HD switchable)
1 x HDMI Type A (10-bit SD/HD/Ultra HD switchable)
2 Channel embedded audio for SDI and HDMI inputs
Audio Input
Digital
20 x Embedded audio via SDI or HDMIAnalog
2 x XLR
2 x RCA Extra Audio Inputs
1 x XLR Timecode
1 x XLR Talkback
Audio Output
SDI Audio Output
2 Channels embedded into SDI outputs Analog
2 x XLR Program
2 x XLR Montior Extra Audio Outputs
1 x XLR Timecode
1 x XLR Talkback
Sync Input
1 x SDI, Tri-Sync or Blackburst
Frame Synchronizer
20 x Internal frame synchronizers (all inputs)
Program Output
3 x SDI (10-bit SD/HD/Ultra HD switchable)
1 x HDMI Type A (10-bit SD/HD/Ultra HD switchable)
1 x SDI (Ultra HD to HD downcoverted output)
Preview Output
1 x SDI (10-bit SD/HD/Ultra HD switchable)
Auxiliary Output
6 x SDI (10-bit SD/HD/Ultra HD switchable)
Multi View Output
2 x SDI
2 x HDMI
Multi View Output
1 x SDI
1 x HDMI
Ethernet
1 x 10/100/1000 BaseT input. Allows direct connection between control panel and chassis, or via network
Tally Output
Added via Ethernet connection to Blackmagic Designed GPI and Tally Interface product (sold separately)
GPI
Added via Ethernet connectionNote: GPI and Tally Interface product are optional and are not included
USB Interface
1x USB 2.0 port
Processing
Color Space Conversion
Hardware based, real time
Processing Delay
Video Sampling
4:2:2
Color Space
REC 601
REC 709
REC 2020
Color Precision
10-bit
Audio Mixer
22 input mixer (2 channels per input)
Selectable On/Off/Audio-Follow-Video
Level and Peak metering
Master gain control
Dedicated analog outputs for monitoring
Built-in Media Players
Quantity
2
Channels
2 x per Media Player (fill and key)
Still Image Capacity
32 with fill and key
Clip Capacity
Quantity
2 with fill and keyMaximum Clip Length
Ultra HD: 180 frames
1080p/i: 720 frames
720p: 1600 frames
NTSC/PAL: 3600 frames
Image File Formats
Still
PNG, TGA, BMP, GIF, JPEG, and TIFFVideo
TGA sequenceAudio
WAV, MP3, AIFF
Multi-View Monitoring
Display
Minimum monitor resolution: 1366 x 768
Number of Windows
2 Multi-view display with 10 x windows for:
Preview
Program
16 x assignable displays
Tally
Red for program and green for preview indicationNote: Requires optional Blackmagic Design GPI and Tally interface product
ATEM Software Control PanelMac
OS X 10.8 Mountain Lion
OS X 10.9 Mavericks or later Windows
Windows 7 64-bit
Windows 8 32/64-bitConfiguration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis
Extras
Layers
13 total
Keyers
4 x Upstream
2 x Downstream
7 x Linear/Luma
1 x Stinger
4 x Chroma
1 x DVE, with 3D borders and drop shadows
Generators
7 x Pattern
2 x Color
Power
Power Supply
2 x built-in power supply
110/240 VAC, 50/60 HzNote: IEC power cord required, not included
Power Consumption
150 W
General
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Relative Humidity
0 to 90% non-condensing
Rack Size
2 RU
Dimensions (W x H x D)
19.00 x 3.54 x 9.25″ (48.26 x 8.99 x 23.46 cm)
Weight
9.0 lb (4.1 kg)
Packaging Info
Package Weight
10.1 lb
Box Dimensions (LxWxH)
19.4 x 10.8 x 5.0″
Kérdéseivel és rendelési igényével kapcsolatosan forduljon hozzánk bizalommal:
AKATONA Technologiák Kft.
1111 Budapest, Bartók Béla út 46. II./17.
Telefon: 20 9220-620
